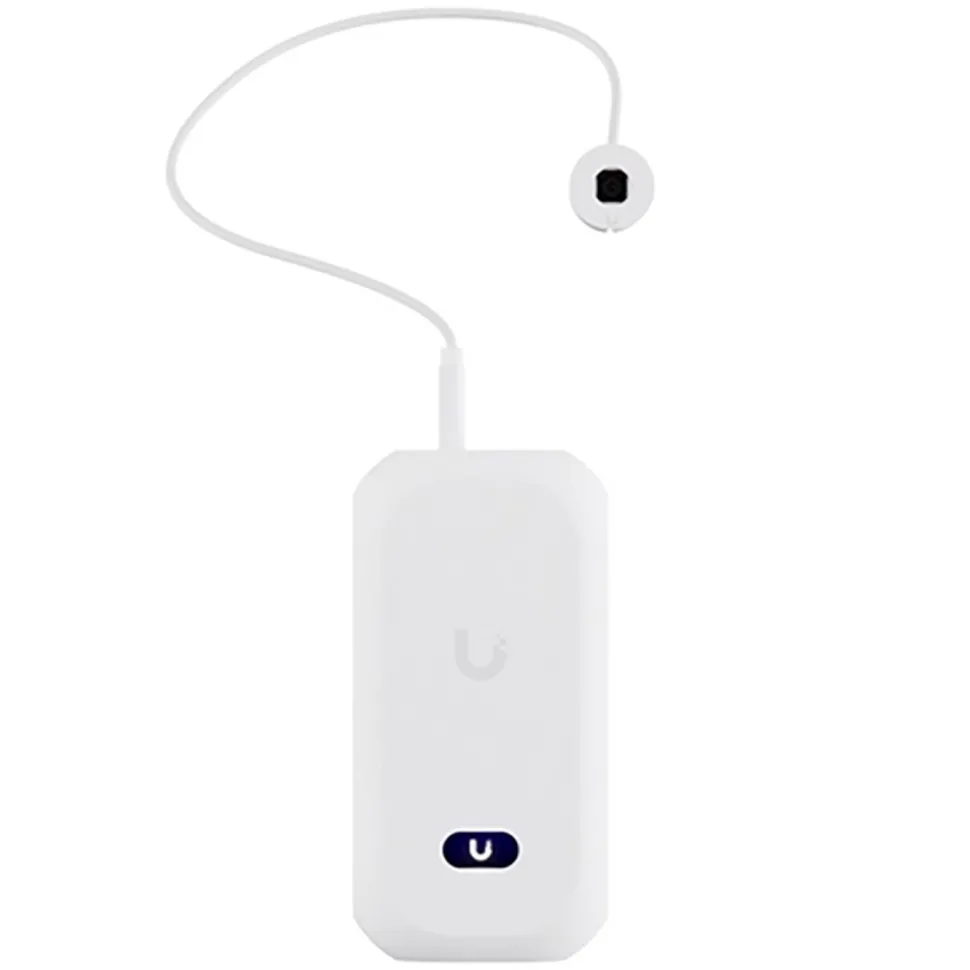

Ubiquiti AI Theta Professional Övervakningskamera

Specifikationer

Dimensions
UVC-AI-Theta-Hub: 140 x 70 x 38 mm
UVC-AI-Theta-Lens/360: Ø22.8. x 43.5 mm

Weight
UVC-AI-Theta-Hub: 330 g
UVC-AI-Theta-Hub Mount: 35 g
UVC-AI-Theta-Lens/360: 15 g
UVC-AI-Theta-Lens/360 Flush Mount: 12 g

Enclosure materials
UVC-AI-Theta-Hub: aluminum alloy
UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate
UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate

Mount materials
UVC-AI-Theta-Hub: aluminum alloy
UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate
UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate

Cable jacket enclosure dimensions: 28 x 13 x 7.5 mm
Cable jacket enclosure material: PVC
Cable length: 1 m
Cable diameter: 3.7 mm
Cable jacket material: Woven fabric
Cable weight: 18 g
Cable connector type: Theta proprietary

Optics
Sensor: UVC-AI-Theta-Lens: 8MP CMOS sensor
UVC-AI-Theta-Lens-360: 12MP CMOS sensor
Lens: Fixed focal length
View angle: UVC-AI-Theta-Lens: H: 97.5°, V: 79.4°, D: 118.2°
UVC-AI-Theta-Lens-360: H: 180°, V: 180°, D: 180°

Video
Video compression: H.264
Resolution: UVC-AI-Theta-Lens: 8MP 3264 x 2448 (4:3)
UVC-AI-Theta-Lens-360: 6MP 2560 x 2560 (1:1)
Max. frame rate: UVC-AI-Theta-Lens: 24 FPS
UVC-AI-Theta-Lens-360: 20 FPS
Image settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay

System
Processor: Quad-core Arm Cortex-A53 based chip
Networking interface: GbE RJ45 port
Max. power consumption: 12,5W
Power method: PoE
Power supply: 5V DC, 0.5A
Supported voltage range: 37—57V DC
Output power: 5V DC, 1A per port
LED: R/G/B/W
Button: Factory reset
Mounting: Wall, ceiling mount
Operating temperature: -20 to 40° C
Operating humidity: 10 to 90% noncondensing
Certifications: FCC, IC, CE

Audio
Microphone: Yes (Can be disabled)
Speaker: Yes
Power supply: 5V DC, 0.9A

Software
Web application: UniFi Protect: Version 2.7.18 and later
Mobile app: UniFi Protect iOS™ and Android™: Version 1.11.0 and later
